Understanding Digital Circuits: The Building Blocks of Modern Technology
An introduction to World of Digital Electronics
Digital circuits operate by performing Boolean operations on binary numbers, essentially applying Boolean algebra to electronic signals.
Precision and Versatility of Digital Circuits
Digital circuits are characterized by having only two possible outputs: 0 or 1, making them extremely precise. These circuits are scalable, versatile, cost-effective, and fast. Debugging digital circuits is generally easier compared to their analog counterparts.
Voltage Representation in Digital Circuits
It’s important to note that ‘0’ and ‘1’ do not represent literal values but rather voltage levels. For instance, ‘1’ could represent 5V, 3.7V, 2.2V, or 1V, depending on the specific circuit design.
The Foundation: Logic Gates

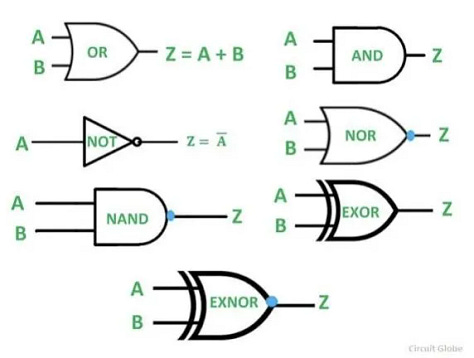

The building blocks of digital circuits are logic gates, including NOT, AND, OR, XOR, XNOR, NAND, and NOR gates. These gates combine to form complex digital systems. For example, the Intel Core i9 13th Generation processor consists of an intricate network of these logic gates.
Transistors in Logic Gates
Logic gates are typically constructed using transistors, primarily MOSFETs (Metal-Oxide-Semiconductor Field-Effect Transistors), which are preferred over BJTs (Bipolar Junction Transistors) for their higher reliability and performance in digital applications.
Applications Beyond Processors
Digital circuits are fundamental not only in processors and integrated circuits but also in storage devices like RAM and ROM. They are crucial in GPUs and CPUs, particularly in AI accelerators.
Academic Relevance
Digital circuits are studied in courses such as Digital Logic Design, Digital System Design, and Computer Architecture and Organization, where theoretical knowledge is applied to practical, real-world applications.
Driving Technological Advancements
Advancements in AI and other technologies are largely due to progress in logic design and computer architecture. The continuous evolution of digital circuits enables more sophisticated and powerful innovations.
— — — — — — — — — — — — — — — — — — — — — — — — — — — — — —
